Product Information
Super-Thin Type Conveying Machine
FEATURES AND CONSTRUCTION
l Adopt aluminum extruding structure, so assembly and repair are simple.
l Super thin design without occupying space, adjustable conveyance height.
l The driving motor part can be freely moved.
l Wide application, suitable for unloading and finished product & waste matter moving out of punch press as well as articles conveyance and transport of all industries.

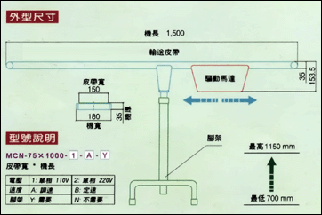

Main Specifications (mm)
|
Model |
MCN-75 |
MCN-100 |
MCN-150 |
MCN-200 |
MCN-250 |
|
Belt Width |
75 |
100 |
150 |
200 |
250 |
|
Machine Length |
1000 1250 1500 2000 2500 mm |
||||
Main Specifications (mm)
|
Model |
MCK-300 |
MCK-400 |
MCK-500 |
MCK-600 |
MCK-700 |
|
Belt Width |
280 |
380 |
480 |
580 |
680 |
|
Machine Length |
1250 1500 2000 2500 3000 mm |
||||
